Dold

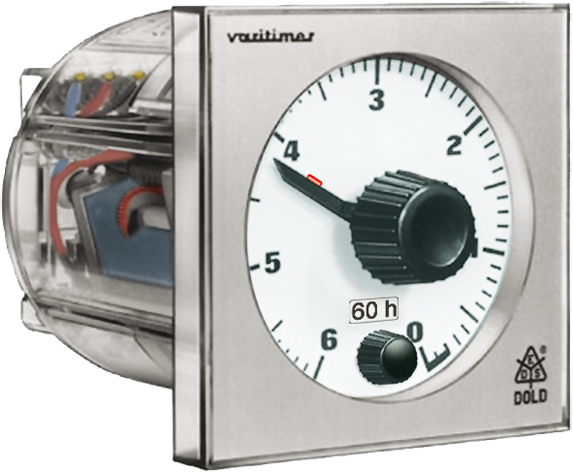

Dold EH7666.21 AC50/60HZ 12V 0,15S-30H, Timer, Off-delay, sku: 0056163
Dold EH7666.21 AC50/60HZ 12V 0,15S-30H, Timer, Off-delay, sku: 0056163
Regular price
€300,94
Regular price
Sale price
€300,94
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0056163
Time dependent controls
| Width: | 96 mm |
| Time function(s): | Off-delay, with control signal |
| Nominal voltage: | AC, DC |
| Time range: | 0,15 s - 60 h |
| Output contacts: | 1 C/O contact |
| Enclosure design: | Front panel mounting |
| Type: | EH 7666 |
- OFF-delay relay with control signal according to EN 61812-1
- Delay up to 60 h
- 6 time ranges on one unit, adjustable at front side
- Repeat accuracy ≤ ± 0.5 % (≤ ± 1 % for the range 3 and 6 s)
- Time lapse display
- Switching position display (except for EH 7666)
- With instantaneous contact
- No voltage safe
- EF 7666: front side protected against beam water, IP 65
- AA 7666: width 45 mm
EC 7666: front size 48 x 72 mm
EF 7666: front size 72 x 72 mm
EH 7666: front size 96 x 96 mm
