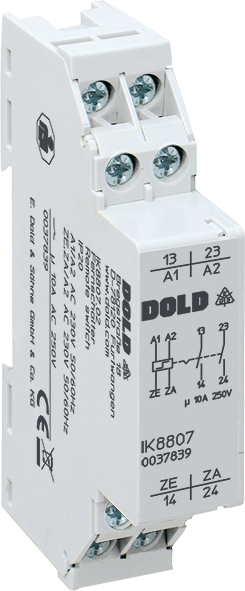

Dold IK8807.02 AC50/60HZ 230V, Remote switch for central switching operations, sku: 0037839

The remote switch IK 8807 enables central switching operations to be carried out, with which it is possible to switch several different groups of consumers on and off from a central location. A remote switch that can be switched not only by room pushbuttons but also by central pushbuttons is necessary for each group of consumers. If a permanent signal is issued by a central pushbutton (or switch), the room pushbuttons are ineffective.

• According to IEC/EN 60 669
• With 1 or 2 NO contacts as options
• When ZE or ZA is actuated, the pulse via room pushbuttons is ineffective
• 15 mA glow lamp load
• Width 17.5 mm
