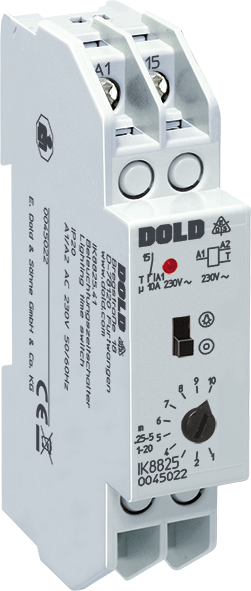

Dold IK8825.41 AC50/60HZ 230V 5/20M, Lighting time switch, sku: 0045022
Dold IK8825.41 AC50/60HZ 230V 5/20M, Lighting time switch, sku: 0045022
Regular price
€117,10
Regular price
Sale price
€117,10
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0045022
Automatic staircase light switch with time extension as requiredTo be used in carparks. To load or unload cars the lighting time canbe extended.
| Width: | 17,5 mm |
| Depth: | 58 mm |
| Thermal current Ith: | 10 A |
| Resettable: | Yes |
| Time extension by long push button operation: | Yes |
| Output contacts max.: | 1 NO contact |
| Type: | IK 8825 |
- According to EN 60 669-1, EN 60 669-2-1
- With 2 delay times
- 0.3 ... 5 min. if the pushbutton is pressed briefly (< 1 s)
- 1.2 ... 20 min. if the pushbutton is pressed for a long time (> 1 s)
i.e. the delay time is four times as long - Operating time adjustment with a screwdriver
- Reswitching possible
- IK 8825 with permanent light switch
- Permanent light as long as the pushbutton is pressed
- IK 8825 for installation on a top hat rail
- OA 8825 for installation in flush-mounted boxes
- Width IK 8825 17.5 mm
