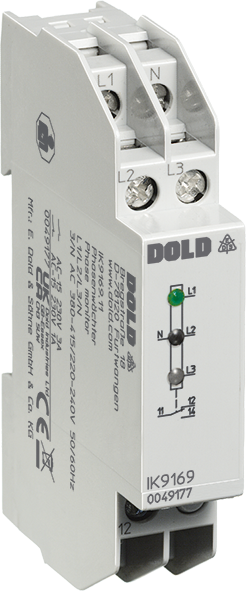

Dold IK9169.11 3/N AC380-415/220-240V, Phase monitor, sku: 0049177

The phase monitor 9169 is available in the 3 housing variants IK, SK and RK. It is used to detect phase failure in three-phase networks.

• According to IEC/EN 60255-1
• Detection of phase failure in 3-phase systems
• Single phase connection possible
• Closed circuit operation
• Independent of phase sequence
• LED indicator for each phase
• Output 1 changeover contact
• Devices available in 2 enclosure versions:
  - I- and R-versions, e.g. IK 9169 with depth 61 mm or RK 9169 with depth 71 mm with terminls at the bottom for installation systems and industrial distribution systems according to DIN 43880
  - S-version, e.g. SK 9169: depth 100 mm, with terminals at the top for cabinets with mounting plate and cable duct
• Width 17.5 mm
