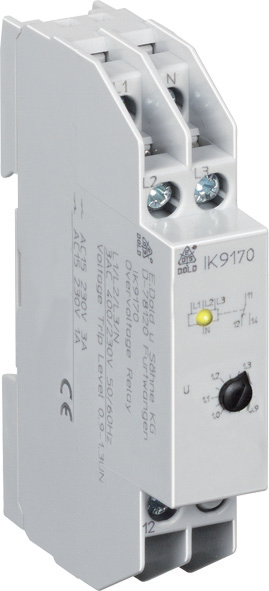

Dold IK9170.11/030 3/NAC110/63,5V ,9-1,3, Overvoltage Relay, 3-phase, sku: 0060541

Dold IK9170.11/030 3/NAC110/63,5V ,9-1,3, Overvoltage Relay, 3-phase, sku: 0060541

€111,45
€111,45
Sale Sold out
Taxes included.

📦 Ready for dispatch: 31.12.2025

SKU: 0060541

Monitors overvoltage, in 3-phase voltage systems.

Width: 17,5 mm
Operate delay: Yes
1- / 3-phase: 1, 3
Nominal voltage max.: 3/N AC 400 / 230 V
Auxiliary voltage: Without
Output contacts: 1 C/O contact
Enclosure design: Distribution board
Type: IK 9170
  • According to IEC/EN 60255-1
  • Monitoring of overvoltage in 3-phase systems
  • Also for single phase
  • Without auxiliary supply
  • Settable response value
  • N.C. circuit operation (optionally N.O. circuit operation)
  • Optionally with or without N
  • Optionally with delay t1 on trip
  • Optionally with delay t2 on reset
  • LED indicator for state of output relay
  • Indepenent of phase sequence
  • 1 changeover contact
  • Devices available in 2 enclosure versions:
    IK 9170: depth 59 mm, with terminals at the bottom for
    installation systems and industrial distribution
    systems according to DIN 43880
    SK 9170: depth 98 mm, with terminals at the top for cabinets
    with mounting plate and cable duct
  • Width 17.5 mm
