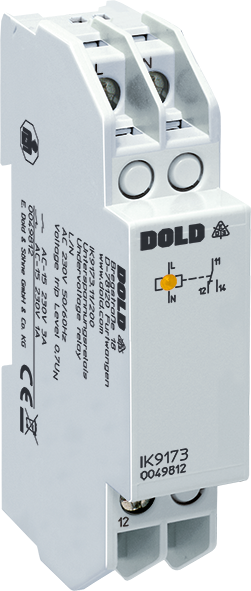

Dold IK9173.11 DC48V 0,7-1,0UN4%, Undervoltage Relay, Single-Phase, sku: 0051109

The IK 9173 and SK 9173 voltage relays in the VARIMETER series monitor AC voltage networks for undervoltage. The measurement is very simple and does not require a lot of wiring, as no separate auxiliary voltage is required. Early detection of impending failures and preventive maintenance prevent costly damage and, as a user, you benefit from the operational reliablility and high availability of your system.

• According to IEC/EN 60255-1
• Monitoring of undervoltage
• Without auxiliary supply
• Optionally fixed or settable response value
• N.C. circuit operation
• Optionally with off-delay t1
• Optionally with on-delay t2
• LED indicator for state of output relay
• 1 changeover contact
• Devices available in 2 enclosure versions:
  IK 9173: Depth 59 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43880
  SK 9173: Depth 98 mm, with terminals at the top for cabinets with mounting plate and cable duct
• Width 17.5 mm
