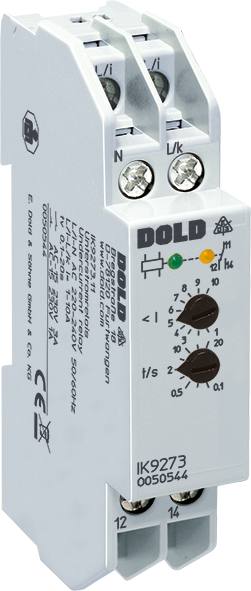

Dold IK9273.11/010 AC220-240V 0,1-1A, Undercurrent Relay, sku: 0052706

Undercurrent monitoring in AC voltage power supplies.

• According to IEC/EN 60 255
• Single phase
• Measuring ranges from 0.05 ... 10 A
• Setting value adjustable from 0.1 ... 1 IN
• Fixed hysteresis approx. 4 %
• Settable switching delay
• Closed circuit operation
• Optionally open circuit operation
• Automatic reset
• Optionally manual reset, reset button on the front
• LED indication for auxiliary voltage and contact position
• 1 changeover contact
• Devices available in 2 enclosure versions:
  IK 9273: depth 59 mm, with terminals at the bottom for
  installation systems and industrial distribution
  systems according to DIN 43 880
  SK 9273: depth 98 mm, with terminals at the top for cabinets
  with mounting plate and cable duct
• Width 17.5 mm
