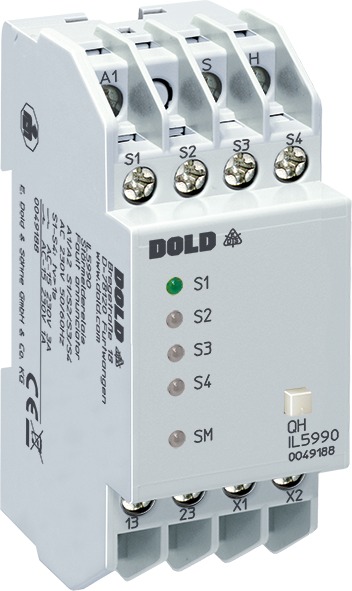

Dold IL5990 AC/DC24V 10S, Fault Annunciator System, sku: 0056704

For monitoring of industrial plants and buildings.

• According to DIN 19235
• Common alarm annunciator
• Expandable from 4 up to 160 inputs
• Open circuit inputs / closed circuit inputs  selectable via bridges X1-X2
• Delayed inputs up to 10 s
• Acknowledgement push button QH for external buzzer built in
• Accessories: Buzzer IK 8832, SK 8832
• Devices available in 2 enclosure versions:
  I-model: depth 61 mm, with terminals at the bottom for installations
  systems and industrial distribution systems according to DIN 43 880
  S-model: depth 100 mm, with terminals at the top for
  cabinets with mounting plate and cable duct
• Width 35 mm
• Fault annunciator IL 5990, SL 5990:
  4 inputs with LED on control unit
  1 output for common signal and 1 output for audible alarm
