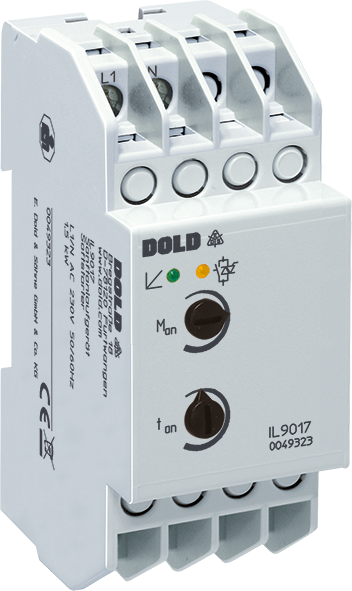

Dold IL9017 AC230V 1,5KW, Softstarter, sku: 0049323

These soft starters are robust electronic control units for soft starting of AC motors. By means of phase-angle control the current rises continuously. The motor torque behaves in the same way during start-up. This ensures that the drive can start without jerking. This eliminates the risk of damage to drive elements because the sudden starting torque does not occur during direct switch-on. This feature allows a low-cost design of the drive elements. A significant reduction in starting noise can also be observed. In belt conveyor systems, slippage or tipping over of the conveyed material is avoided. After successful start-up, the power electronics are bridged by means of an internal relay contact in order to minimise the losses in the device.

• According to IEC/EN 60947-4-2
• Increases life of 1-phase squirrel motors and mechanical drives
• For single phase motors up to 1.5 kW
• Adjustable ramp time and starting torque
• Semiconductors will be bridged after start up
• LED indication
• Devices available in 2 enclosure version:
  IL 9017: Depth 61 mm with terminals at the bottom for installations systems and industrial distribution systems according to DIN 43880
  SL 9017: Depth 100 mm with terminals at the top for cabinets with mounting plate and cable duct
• Width 35 mm
