Dold IP5503.28/100 DC24V, Output module for CANopen, sku: 0057901
Dold IP5503.28/100 DC24V, Output module for CANopen, sku: 0057901
Regular price
€346,17
Regular price
Sale price
€346,17
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0057901

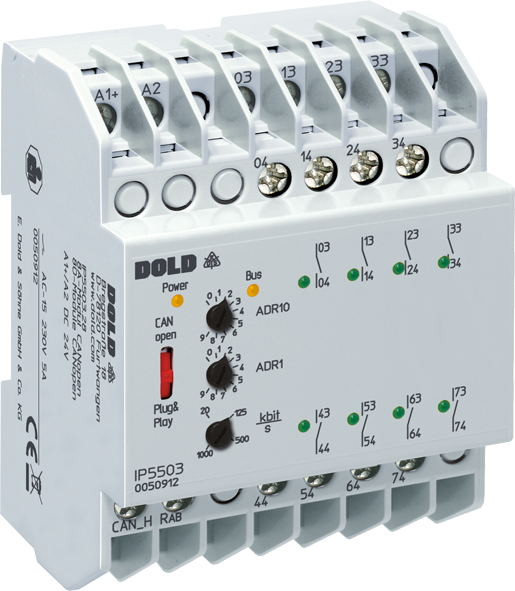

The CANopen output module IP 5503 has 8 relay outputs. The IP 5503 can be operated both in combination with a CANopen PLC and in plug & play operatioon with a CANopen input module IP 5502.
| Width: | 70 mm |
| Number of inputs/outputs: | 8 relay outputs |
| Thermal current Ith: | 2 A |
| Enclosure design: | Distribution board |
| Type: | IP 5503 |
- According to IEC/EN 61131-2
- CANopen interface according to DS301 version 3.0 (Plug and Play selectable), as option with galvanic separation
- 8 relay outputs
- LED indicators for supply voltage, Bus status and state of contact
- 70 mm width
