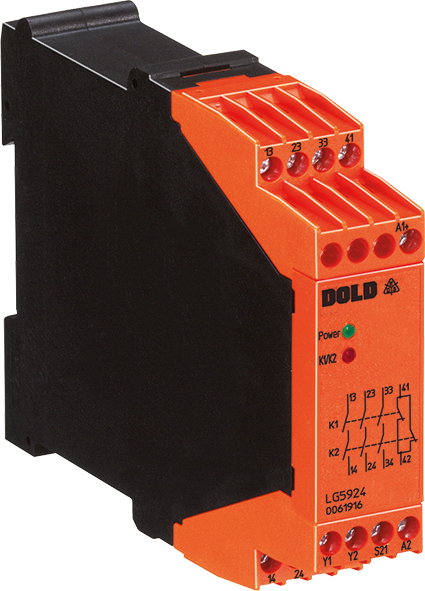

Dold LG5924.48/61 AC50/60HZ 110V, Emergency stop module, sku: 0061917

Dold LG5924.48/61 AC50/60HZ 110V, Emergency stop module, sku: 0061917

€194,13
€194,13
Sale Sold out
Taxes included.

📦 Ready for dispatch: 06.12.2025

SKU: 0061917

The emergency stop modules LG 5924 can be used to protect people and machines by interrupting a safety circuit in a safe way.

Width: 22,5 mm
Cat. / PL acc. to EN ISO 13849-1: 4/e
SIL acc. to IEC/EN 62061: 3
Nominal voltage: AC, DC
Thermal current Ith max.: 5 A
1- / 2-channel: 1, 2
Connection: Screw terminals, Pluggable screw terminals, Pluggable cage clamp terminals
Output contacts max.: 4 NO contacts
Approvals: UL
Type: LG 5924
  • According to
    - Performance Level (PL) e and category 4 to EN ISO 13849-1
    - SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
    - Safety Integrity Level (SIL) 3 to IEC/EN 61508
  • According to EN 50156-1 for furnaces
  • Single channel or two-channel operation
  • Output: max. 4 NO contacts
  • AC 230 V model with galvanic separation
  • LED indicator for channel 1 / 2 and state of operation
  • Short circuit detection between terminal Y1 and common
  • Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
  • As option with pluggable terminal blocks for easy exchange of devices
    - With screw terminals
    - Or with cage clamp terminals
  • Width 22.5 mm
