Dold

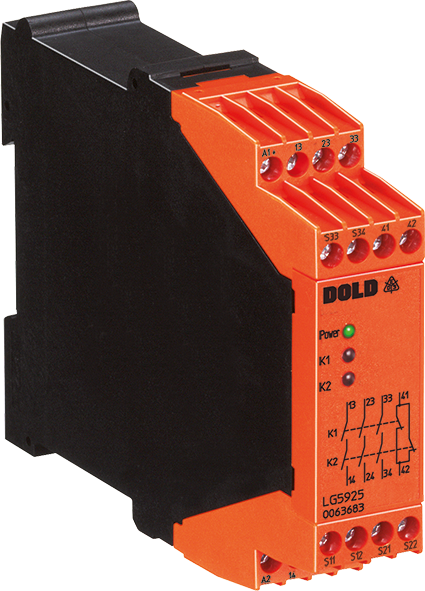

Dold LG5925.04/920/61 DC24V, Safety module for safety switches, sku: 0067945

Dold LG5925.04/920/61 DC24V, Safety module for safety switches, sku: 0067945

€247,56
€247,56
Sale Sold out
Taxes included.

📦 Ready for dispatch: 31.12.2025

SKU: 0067945

Protection of people and machinesMonitoring of safety gatesUsage in furnace application in continuous operation acc. to EN 50156-1

Width: 22,5 mm
Cat. / PL acc. to EN ISO 13849-1: 4/e
SIL acc. to IEC/EN 62061: 3
Nominal voltage: DC
Thermal current Ith max.: 8 A
1- / 2-channel: 1, 2
Cross fault detection: Yes
Approvals: UL
Connection: Screw terminals, Pluggable screw terminals, Pluggable cage clamp terminals
Output contacts max.: 4 NO contacts
Type: LG 5925/920
  • According to
    - Performance Level (PL) e and category 4 to EN ISO 13849-1
    - SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
    - Safety Integrity Level (SIL) 3 to IEC/EN 61508 and IEC/EN 61511
  • According to EN 50156-2 for furnaces
  • To connect:
    - Safety switch NE 5021
  • Output: max. 4 NO contacts, see contacts
  • 1- or 2-channel operation
  • Line fault detection on On-button
  • Manual restart or automatic restart, switch S2
  • with or without cross fault monitoring switch S1
  • LED indicator for channel 1, 2 and supply voltage
  • Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46228-1/-2/-3/-4
  • As option with plugable terminal blocks for easy exchange of devices
    - With screw terminals
    - Or with cage clamp terminals
  • Width 22.5 mm
