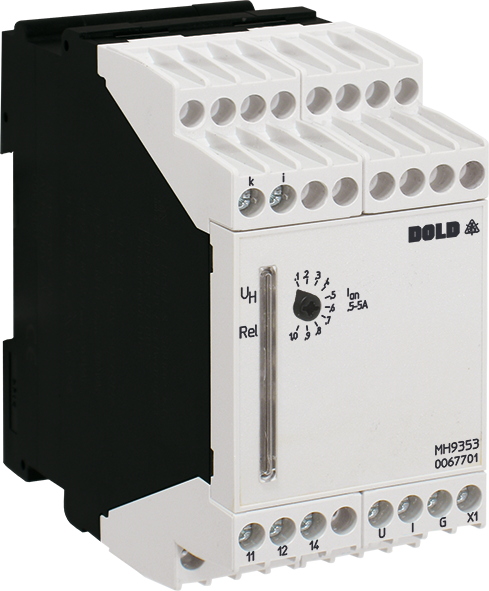

Dold MH9353.11 AC0,5-5A UH=AC230V, Current measuring transducer, sku: 0067701

The current measuring transducer MH 9353 is a combination of measuring relay and measuring transducer and monitors the current consumption of electrical consumers. The unit has an electrically isolated analogue output and a relay output. The response value is adjustable by means of rotary switch. The unit works on the closed-circuit current principle, i.e. the relay is de-energised when the response value is exceeded. An LED indicates the switching status of the output relay.

• According to IEC/EN 60255-1
• Galvanic separate analogue signals, optionally with
  - 0 … 20 mA and 0 … 10 V or
  - 4 … 20 mA and 2 … 10 V
• Adjustable response value
• Fixed hysteresis
• LED indication for auxiliary voltage and contact position
• With auxiliary voltage
• As option with pluggable terminal blocks for easy exchange of devices
  - With screw terminals
  - Or with cage clamp terminals
• Width: 45 mm
