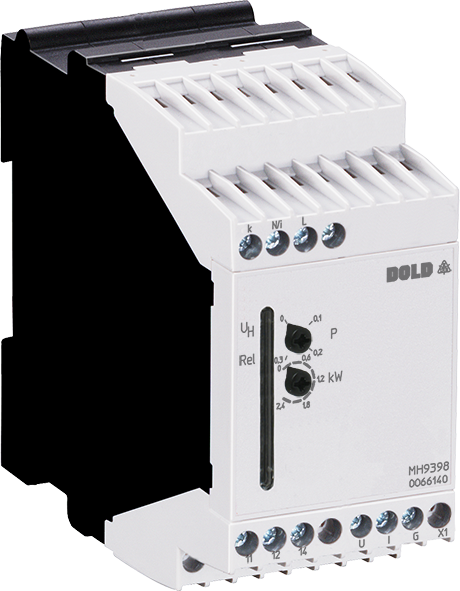

Dold MH9398.11 AC12-230V UHAC230V AC10A, Active power transducer, sku: 0066140

The active power transducer MH 9398 of the VARIMETER-family monitors reliably the effective power of single phase electric consumers. Adjustment is simply done via 2 rotary switches. When exceeding the adjusted threshold the output relay switches. In addition the unit has 2 galvanic separated analogue outputs. These provide the momentary active power value. LEDs indicate the connected supply and the state of the output relay.

• According to IEC/EN 60255-1
• Measurement procedures: active power measuring
• Detection of overload
• Galvanic separate analogue signals, optionally with
  - 0 … 20 mA and 0 … 10 V or
  - 4 … 20 mA and 2 … 10 V
• Adjustable response value
• Fixed hysteresis
• Single-phase
• LED indication for auxiliary voltage and contact positionDe-energized on trip
• Width: 45 mm
