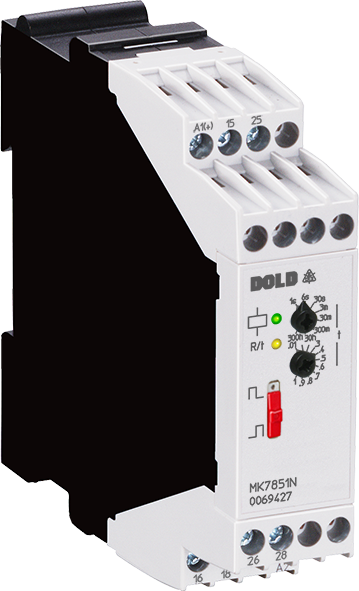

Dold MK7851N.82 AC/DC12-240V 0,05S-300H, Flasher relay, sku: 0069427

Time-dependent controllers

• Symmetrical flasher relay according to IEC/EN 61812-1
• 8 time ranges from 0.05 s to 300 h selectable via rotational switches
• Selectable start with impulse or break
• Voltage range AC/DC 12 ... 240 V
• Adjustment aid for quick setting of long time values
• Suitable for 2-wire proximity sensor control
• LED indicators for operation, contact position and time delay
• 2 changeover contacts
• Wire connection: Also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46228-1/-2/-3/-4
• As option with pluggable terminal blocks for easy exchange of devices
  - With screw terminals
  - Or with cage clamp terminals
• 22.5 mm width
