Dold

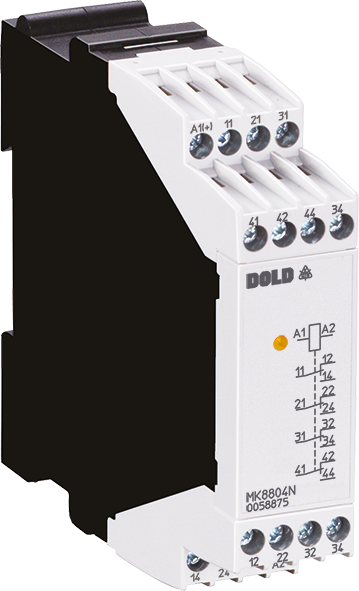

Dold MK8804N.12 AC/DC220-240V, Interface relay, sku: 0067066
Dold MK8804N.12 AC/DC220-240V, Interface relay, sku: 0067066
Regular price
€84,07
Regular price
Sale price
€84,07
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0067066
The MK 8804N coupling relay is used for contact multiplication and is suitable as a link between the control and power levels.
| Width: | 22,5 mm |
| Nominal voltage: | AC, AC/DC |
| Initiator triggering: | Yes |
| Suppressor circuit on the coil input: | Yes |
| Thermal current Ith max.: | 5 A |
| Output contacts max.: | 4 C/O contacts |
| Enclosure design: | Switch cabinet |
| Type: | MK 8804N |
- According to IEC/EN 60947-5-1
- With LED indicator
- As option: With 2, 3 or 4 changeover contacts
- As option to switch low loads
- As option for 2-wire proximity sensor control
- Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46228-1/-2/-3/-4
- As option with pluggable terminal blocks for easy exchange of devices
- With screw terminals
- Or with cage clamp terminals - Width 22.5 mm
