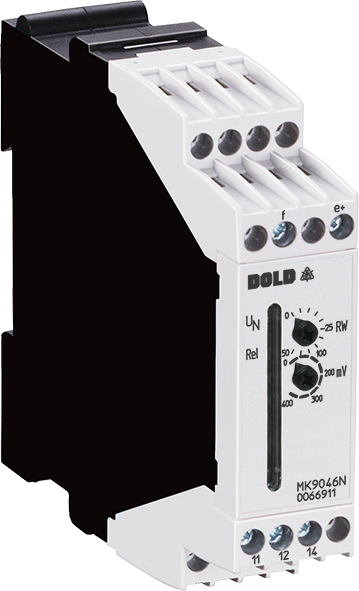

Dold MK9046N.11 DC48V 0-400mV Tv=10s, Voltage monitor, sku: 0066911

The voltage monitor MK 9046N of the VARIMETER family monitors the residual ripple of a DC voltage system. When exceeding an adjustable limit value a green flashing LED indicates the failure. After a time delay of approx. 10 s the LED goes off and the output relay de-energises. This allows a reliable protection of plants and electronic systems against increased residual ripple in DC voltage systems.

• According to IEC/EN 60255-1
• For monitoring direct current voltage supply systems to detect residual ripple
• For DC 48 V
• With adjustable residual ripple
• LED indication for operation and contact position
• Time delay 10 s
• 1 changeover contact
• Width: 22,5 mm
