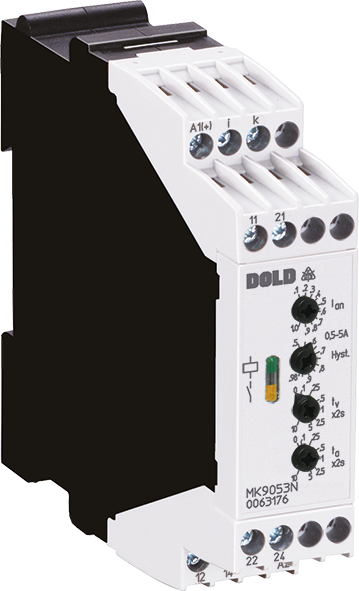

Dold MK9053N.12/013 AC2-20mA Tv=0-20s, Current Relay, sku: 0063913

The current relay MK 9053N of the VARIMETER series monitors single phase DC or AC voltage systems(with 1 Measuring range for AC and DC). The adjustment is made via potentiometers on the front of the device. Early recognition and preventive maintenance avoid interruptions of electrical plants and provides a higher operational and plant safety.

• According to IEC/EN 60255-1, IEC/EN 60947-1
• To: Monitor DC and AC
• Measuring ranges from 2 mA up to 10 A
• High overload possible
• Input frequency up to 5 kHz
• Galvanic separation between auxiliary circuit - measuring ciruit
• With start-up delay
• With time delay, up to max. 100 sec
• As option with remote potentiometer
• As option with manual reset
• Option with fixed settings possible
• LED indicators for operation and contact position
• As option with pluggable terminal blocks for easy exchange of devices
  - With screw terminals
  - Or with cage clamp terminals
• Width: 22.5 mm
