Dold MK9053N.12PC/010 AC,5-5A ACDC24-80V, Current Relay, sku: 0066392

Dold MK9053N.12PC/010 AC,5-5A ACDC24-80V, Current Relay, sku: 0066392

€286,94
€286,94
Sale Sold out
Taxes included.

📦 Ready for dispatch: 20.11.2025

SKU: 0066392

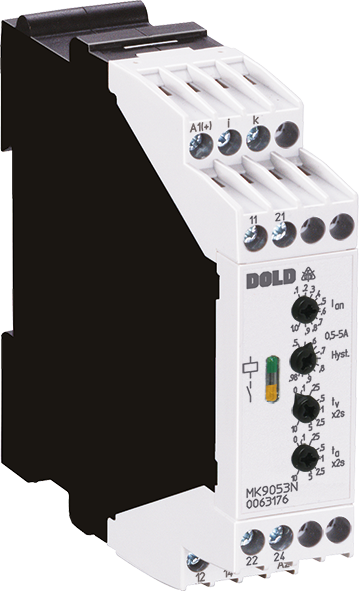

The current relay MK 9053N of the VARIMETER series monitors single phase DC or AC voltage systems(with 1 Measuring range for AC and DC). The adjustment is made via potentiometers on the front of the device. Early recognition and preventive maintenance avoid interruptions of electrical plants and provides a higher operational and plant safety.

Width: 22,5 mm
1- / 3-phase: 1
Measuring range: AC, DC 0,002 - 10 A
Auxiliary voltage: AC/DC
Operate delay: Yes
Output contacts: 2 C/O contacts
Enclosure design: Switch cabinet
Type: MK 9053N
  • According to IEC/EN 60255-1, IEC/EN 60947-1
  • To: Monitor DC and AC
  • Measuring ranges from 2 mA up to 10 A
  • High overload possible
  • Input frequency up to 5 kHz
  • Galvanic separation between auxiliary circuit - measuring ciruit
  • With start-up delay
  • With time delay, up to max. 100 sec
  • As option with remote potentiometer
  • As option with manual reset
  • Option with fixed settings possible
  • LED indicators for operation and contact position
  • As option with pluggable terminal blocks for easy exchange of devices
    - With screw terminals
    - Or with cage clamp terminals
  • Width: 22.5 mm
