Dold

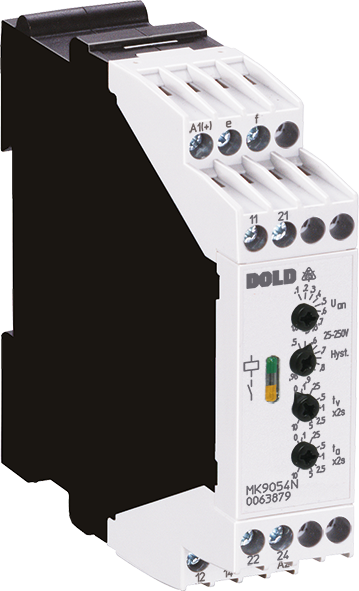

Dold MK9054N.12/012 AC5-50V Tv=0-20S, Voltage relay, sku: 0067047

Dold MK9054N.12/012 AC5-50V Tv=0-20S, Voltage relay, sku: 0067047

Regular price €273,73
Regular price Sale price €273,73
Sale Sold out
Taxes included.

📦 Ready for dispatch: 20.11.2025

SKU: SKU:0067047

The voltage relay MK 9054N of the VARIMETER series monitors single phase DC or AC voltage systems(with 1 Measuring range for AC and DC). The adjustment is made via potentiometers on the front of the device. Early recognition and preventive maintenance avoid interruptions of electrical plants and provides a higher operational and plant safety.

Width: 22,5 mm
Operate delay: Yes
1- / 3-phase: 1
Nominal voltage max.: AC 500, DC 450 V
Auxiliary voltage: AC/DC
Output contacts: 2 C/O contacts
Enclosure design: Switch cabinet
Type: MK 9054N
  • According to IEC/EN 60255-1, IEC/EN 60947-1
  • To: Monitor DC and AC
  • With measuring ranges from 15 mV to 500 V
  • High overload possible
  • Input frequency up to 5 kHz
  • Galvanic separation between auxiliary circuit – measuring ciruit
  • Optionally with start-up delay
  • With time delay, up to max. 100 sec
  • Optionally with remote potentiometer
  • As option with manual reset
  • Option with fixed settings possible
  • LED indicators for operation and contact position
  • As option with pluggable terminal blocks for easy exchange of devices
    - With screw terminals
    - Or with cage clamp terminals
  • Width 22.5 mm
