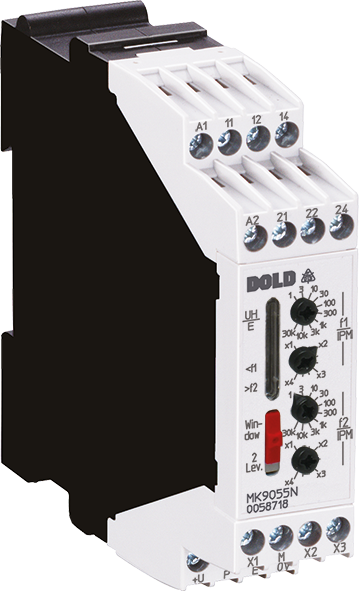

Dold MK9055N.38/506 1-120000IPM Hyst.=5%, Speed monitor, sku: 0067696

The speed monitors MK 9055N/5_ _ und MH 9055/5_ _ monitors the rotational speed of motors. They recognise and monitor impulse signals of e. g. proximity sensors and protect machines and produced material or allows speed depending switching in production processes.

• According to IEC/EN 60255-1
• Monitoring of 2 frequency levels (e.g. underspeed / standstill and overspeed)
• Separate relay outputs for under- and overfrequency (1 or 2 c/o contacts each)
• As alternative window operating mode (monitoring of a speed range)
• Response value for over- and underspeed / frequency separately adjustable in 10 ranges 1 ... 120.000 IPM or 0,15 ... 20.000 Hz
• Most fast reaction time also at low speed by time period measurement of the input frequency
• As option with input for NAMUR-sensors with sensor and wire protection against interruption and short circuit
• Programmable via termminals:
  - Start up time delay 0 ... 50 s or controllable
  - Alarm delay time of 0 or 0.5 s
  - With manual reset or auto reset
• LED-indication for auxiliary voltage, measuring input and output relay; additional LED for indication of wire- / sensor failure at NAMUR-input
• Auxiliary voltages AC 230 V and DC 24 V in one unit
• MH 9055 with wide input range for auxiliary voltage AC/DC 24 ... 60 V or AC/DC 110 ... 230 V (only 2 x 1 C/O)
• As option with analogue output, proportionally to speed
• 2 possible contacts
  MK 9055N/5_ _ 2 x 1 changeover contacs
  MH 9055/5_ _: 2 x 2 hangeover contacs or wide range aux. voltage
• 2 possible compact designs
  MK 9055N/5_ _: Width 22,5 mm
  MH 9055/5_ _: Width 45 mm
