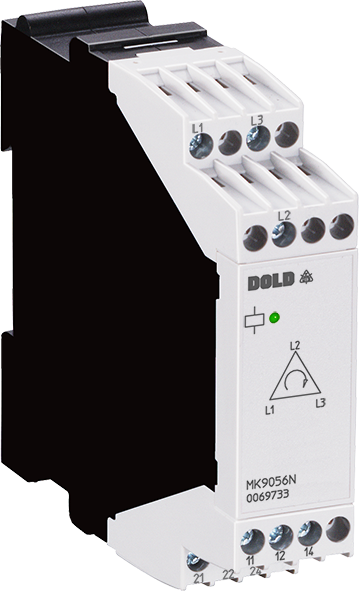

Dold MK9056N.12/61 3AC42-60V 50/60HZ, Phase Sequence Relay, sku: 0069731
Dold MK9056N.12/61 3AC42-60V 50/60HZ, Phase Sequence Relay, sku: 0069731
Regular price
€141,45
Regular price
Sale price
€141,45
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 20.11.2025
Couldn't load pickup availability
SKU: SKU:0069731
The MK 9056N detect wrong phase sequence in 3-phase systems. To monitor phase failure it is more suitable to use an Asymmetry relay e.g. MK 9040N.
| Measuring range max.: | 500 V |
| Standard measuring range: | 3 AC 380 - 500 V |
| 1- / 3-phase: | 3 |
| Output contacts: | 2 C/O contacts |
| Width: | 22,5 mm |
| Enclosure design: | Switch cabinet |
| Type: | MK 9056N |
- According to IEC/EN 60255-1
- Detection of wrong phase sequence
- LED indication of rotation
- Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46228-1/-2/-3/-4
- As option with pluggable terminal blocks for easy exchange of devices
- With screw terminals
- Or with cage clamp terminals - Width 22.5 mm
