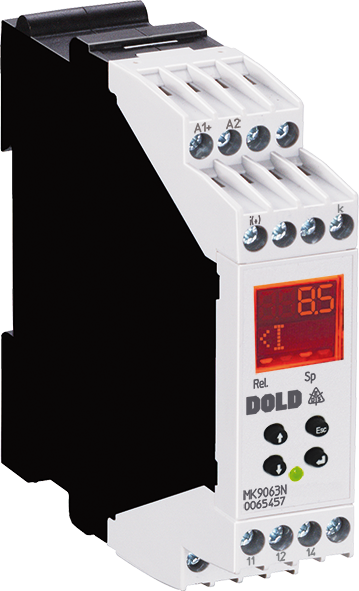

Dold MK9063N.11 AC/DC0,4-10A, Current relay, sku: 0065457

Dold MK9063N.11 AC/DC0,4-10A, Current relay, sku: 0065457

€269,15
€269,15
Sale Sold out
Taxes included.

📦 Ready for dispatch: 20.11.2025

SKU: 0065457

The current relays MK 9063N and MH 9063 of the varimeter family provide a solution for an optimised monitoring of the function or the load current of an electrical device. Single-phase AC and also DC can be measured, undercurrent, overcurrent and current window are monitored and the measured value is displayed on the front.

Width: 22,5 mm
1- / 3-phase: 1
Measuring range: AC/DC 0,001 - 10 A
Auxiliary voltage: DC
Operate delay: Yes
Output contacts: 1 C/O contact
Enclosure design: Switch cabinet
Type: MK 9063N
  • According to IEC/EN 60255-1
  • AC/DC current measuring (single-phase)
  • Start up delay, on delay
  • Manual reset
  • LCD for indication of the measuring values
  • Relay output
    MK 9063N: 1 changeover contact
    MH 9063: 2 x 1 changeover contacts
  • Relay function selectable (energized/de-energized on trip)
  • As option with plugable terminal blocks for easy exchange of devices
    - with screw terminals
    - or with cage clamp terminals
  • Width MK 9063N: 22.5 mm
  • Width MH 9063: 45.0 mm
