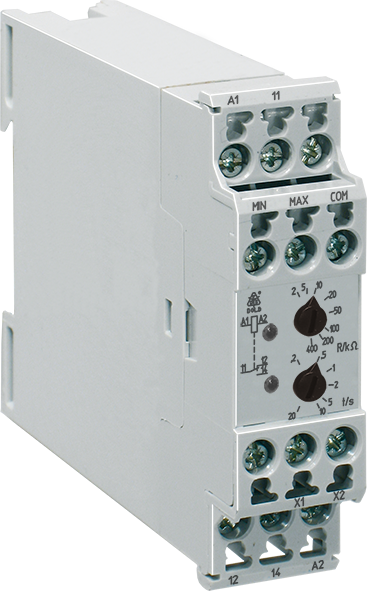

Dold MK9151.11/001 2-450K-OHM AC42-48V, Level Sensing Relay, sku: 0049883
Dold MK9151.11/001 2-450K-OHM AC42-48V, Level Sensing Relay, sku: 0049883
Regular price
€154,32
Regular price
Sale price
€154,32
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 19.11.2025
Couldn't load pickup availability
SKU: SKU:0049883
| Width: | 22,5 mm |
| Measuring range max.: | 450 kΩ |
| Auxiliary voltage: | AC, DC |
| Classification: | Füllstandsüberwachung |
| Operate delay: | Yes |
| Output contacts: | 1 C/O contact |
| Enclosure design: | Switch cabinet |
| Type: | MK 9151 |
- According to IEC/EN 60255-1
- 3 probe connections for 2-point and 1-point level control
- Also for use as moisture detector
- High interference resistance of the measuring circuit, which is isolated from the mains
- Max. wire length to the probes: 1500 m
- Large setting range: 2 ... 450 kΩ this permits differentiation between fluid and foam
- Adjustable response and release time delay: 0.2 ... 20 s
- Programmable for open circuit operation (without bridge) or closed circuit operation(bridge X1-X2 or X1-COM)
- For auxiliary voltages of 24 ... 415 V AC or 24 V DC
- Green LED for operation
- Yellow LED for contact position
- 1 or 2 changeover contacts
- Also available with sealable transparent cover
- Available with safe separation according to IEC/EN 61140, IEC/EN 60947
- Width 22.5 mm
