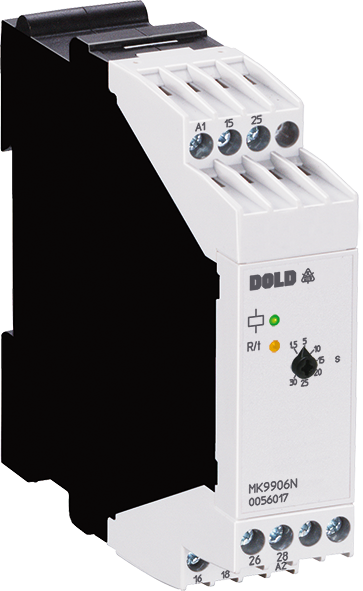

Dold MK9906N.82/600 DC24V 15-300S, Timer, On-delay, sku: 0059342

The timer MK 9906N/600 can be used to switch devices and controls with an adjustable on delay. With these timer the start behaviour of machine parts e. g. the starting of motors can be influenced. With a potentiometer the time delay can be adjusted simply over a large setting range.

• Power ON-delay relay according to EN 61812-1
• Delay from 0.05 s ... 100 h
• Repeat accuracy ≤ ± 0.5 %
• Setting on absolute scale
• LED indicators for operation and state of contacts
• Controlled with 2-wire initiators
• 2 changeover contacts
• Wire connection: Also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46228-1/-2/-3/-4
• As option with pluggable terminal blocks for easy exchange of devices
  - With screw terminals
  - Or with cage clamp terminals
• Width: 22.5 mm
