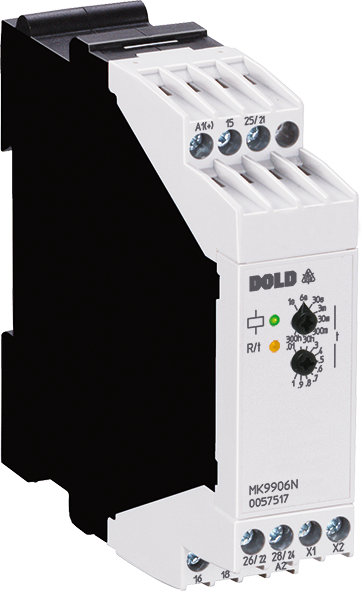

Dold MK9906N.82/61 AC/DC12-240V,05S-300H, Timer, On-delay, sku: 0057517
Dold MK9906N.82/61 AC/DC12-240V,05S-300H, Timer, On-delay, sku: 0057517
Regular price
€110,21
Regular price
Sale price
€110,21
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.12.2025
Couldn't load pickup availability
SKU: SKU:0057517
| Width: | 22,5 mm |
| Time function(s): | On-delay |
| Nominal voltage: | AC/DC |
| Time range: | 0,05 s - 300 h |
| Connection facility for remote potentiometer: | Yes |
| Approvals: | UL |
| Output contacts: | 2 C/O contacts |
| Enclosure design: | Switch cabinet |
| Type: | MK 9906N |
- Power ON-delay relay according to EN 61812-1
- 8 time ranges from 0.05 s to 300 h selectable via rotational switches
- Voltage range AC/DC 12 ... 240 V
- Adjustment aid for quick setting of long time values
- Suitable for 2-wire proximity sensor control
- 2 changeover contacts, one programmable as instantaneous contact
- LED indicators for operation, contact position and time delay
- Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
- As option connection of a remote potentiometer
- As option with time interruption / time adding input
- As option with pluggable terminal blocks for easy exchange of devices
- with screw terminals
- or with cage clamp terminals - 22.5 mm width
