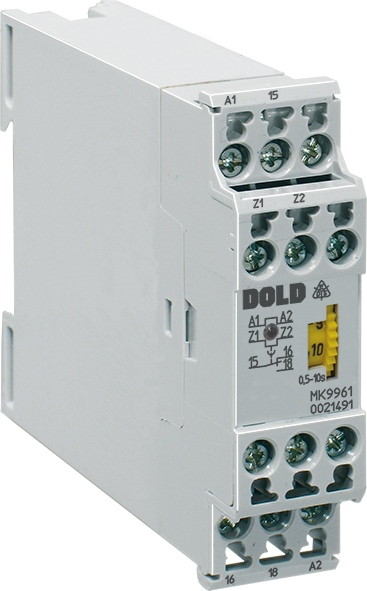

Dold MK9961.35 AC50/60HZ 230V 5-100S, Timer, Off-delay, sku: 0031783
Dold MK9961.35 AC50/60HZ 230V 5-100S, Timer, Off-delay, sku: 0031783
Regular price
€248,63
Regular price
Sale price
€248,63
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.12.2025
Couldn't load pickup availability
SKU: SKU:0031783
The timer MK 9961 release delayed, is intended for use in time-dependent control systems. without auxiliary voltage. The time range is adjustable and remote setting by external resistance is also possible.
| Width: | 22,5 mm |
| Time function(s): | Off-delay, without control signal |
| Nominal voltage: | AC, AC/DC |
| Time range: | 0,05 s - 600 s |
| Approvals: | UL |
| Output contacts: | 1 C/O contact |
| Enclosure design: | Switch cabinet |
| Type: | MK 9961 |
- Power OFF-delay relay according to EN 61812-1
- No-voltage safe
- Delay up to 600 s
- Repeat accuracy < ± 1 %
- Voltage range AC/DC 24 V with polarity protection, AC 110 ... 127, 230 V
- Remote setting by external potentiometer
- LED indicator for voltage supply
- As option with 1 CO contact and 1 NO contact or 1 CO contact
- As option with instantaneous contact
- Width: 22,5 mm
