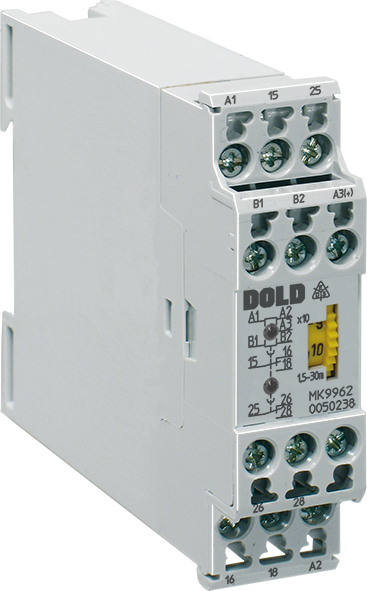

Dold MK9962 AC/DC24V+AC110-127V 1,5-30S, Timer, Off-delay, sku: 0044932

The MK 9962 is a release-delayed time relay with control signal. When the control signal is activated, the relay picks up and the output contact is closed. When the control signal is removed, the time lapse begins. After the time has elapsed, the relay switches back to the rest position. The delay time can be set easily and over a wide adjustment range via a stepless rotary switch.

• OFF-delay relay with control signal according to EN 61812-1
• Time delay up to 100 h
• Repeat accuracy ≤ ± 1 %
• Dual voltage supply
• Control by voltage free contact
• 2 LED displays for control and contact position
• 2 changeover contacts
• Width 22.5 mm
