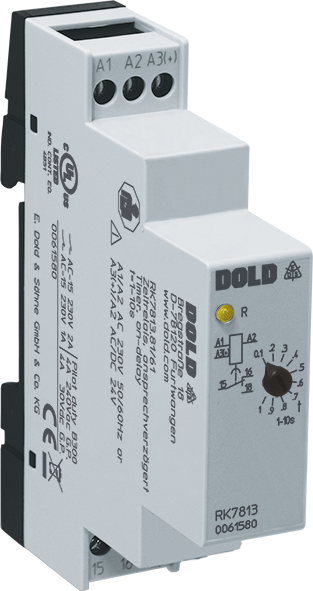

Dold RK7813.32 AC230V+AC/DC24V, Timer, On-delay, sku: 0061272

The timers of the RK series in compact stepped front enclosures fulfill all the demands to modern time control devices. With only a few variants this relay series covers all common timing functions, time ranges and voltage models. The single function modules are on delay range as well as fleeting on make or flasher timers. Besides the standard 1 c/o contact also a second c/o contact or an instantaneous c/o contact is available as option. Therefore these timers are suitable to realize most time depending controls in industry and building automation. As supplement also a multifunction timer with 8 functions is available in this series.

• According to IEC/EN 61812-1
• RK 7813, RK 7815, RK 7816: Time ranges up to 10 h
• RK 7814: 4 time ranges up to 16 h
• LED indicator for state of contact
• Dual-voltage-version AC 230 V + AC/DC 24 V or AC 110 ... 127 V + AC/DC 24 V
• 1 changeover contact
• As option units with second changeover contact (only for voltage AC 230 V + AC/DC 24 )
  - On delayed
  - As instantaneous contact
• Start with impuls only for version RK 7816
• Start with space only for version RK 7816._ _ /_10
• Width: 17.5 mm
