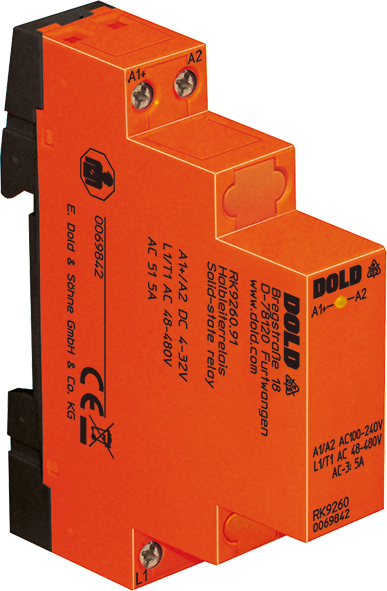

Dold RK9260.91 AC48-480V AC5A, Solid-state relay for resistive load, sku: 0069840

The solid-state relay RK 9260 is designed with 2 anti-parallel connected thyristors switching at zero crossing for resistive loads (e.g. heating systems). When connecting the control voltage the output of the solidstate relay is activated at the next zero crossing of the sinusoidal voltage. When disconnecting the control voltage the output is switched off at the next zero crossing of the load current. The LED shows the state of the control input.

• AC solid-state relay / -contactor
• According to IEC/EN 62314 and IEC/EN 60947-4-3
• Switching at zero crossing for resistive loads
• 2 anti-parallel thyristors
• LED status indicator
• Peak reverse voltage up to ± 1600 V
• Insulation voltage 4000 V
• As option: Instant-on switching
