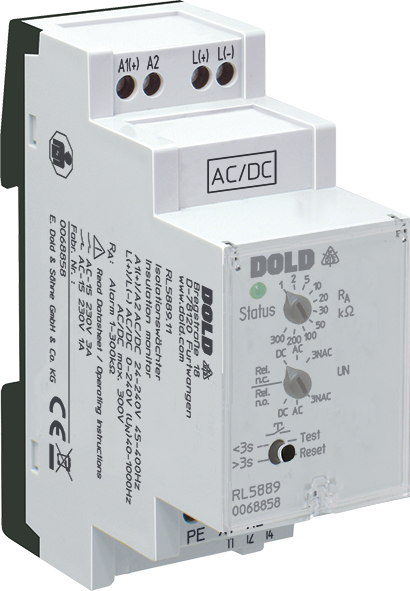

Dold RL5889.11 DC12-24V 1K-300K, Insulation monitor, sku: 0068859
Dold RL5889.11 DC12-24V 1K-300K, Insulation monitor, sku: 0068859
Regular price
€320,37
Regular price
Sale price
€320,37
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.12.2025
Couldn't load pickup availability
SKU: SKU:0068859
The insulation monitor RL 5889 of the VARIMETER IMD family is a solution for optimal insulation monitoring of modern IT systems. The device can be used in the most flexible way for AC, DC and AC/DC systems. The setting of the parameters and the switching values is done by simple and operator friendly rotational switches on front of the device. The operating status is indicated user friendly via a multicolour LED. With a sealable transparent cover the device is protectet against manipulation.
| Width: | 35 mm |
| Response value: | 1 - 300 kΩ |
| IMD type: | AC, DC, AC/DC |
| Nominal voltage IT system: | AC 0 - 240, DC 0 - 240 V |
| Auxiliary voltage: | DC, AC/DC |
| Earth fault indicator: | Yes |
| Response value type: | Adjustable |
| Enclosure design: | Distribution board |
| Type: | RL 5889 |
- Insulation monitoring according to IEC/EN 61557-8
- Adjustable response threshold, Setting range: 1 kΩ … 300 kΩ
- 1 changeover contacts for insulation failure alarm
- Energized or de-energized on trip can be selected for indicator relay
- With multicolour status LED to indicate the state of operation
- Automatic and manual device self-test
- Manual reset or hysteresis function selectable (programmable via control input)
- Protection against manipulation by sealable transparent cover
- Control input for external test- / reset-button
- 2 wide voltage input for auxiliary voltage
- Width 35 mm
