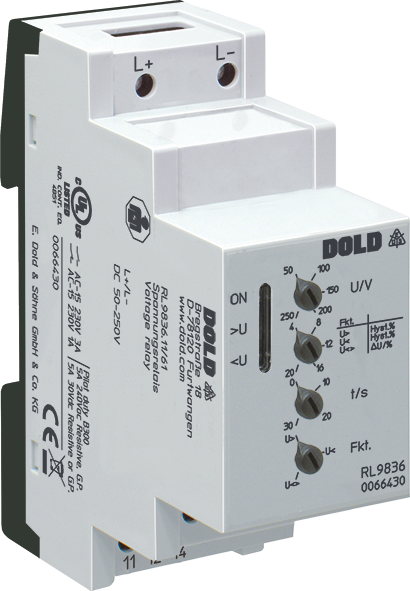

Dold RL9836.11/001/61 DC50-250V 4-20%, Voltage Relay, sku: 0068046

The measuring relay RL 9836 of the VARIMETER series monitors overvoltage, undervoltage and voltage range in DC voltage systems. The measurement is very simple and without extensive wiring as there is no auxiliary power supply necessary. The monitoring functions are easily selectable using a single turn switch without complex menu structure. The early detection of up-coming break downs and preventive maintenance avoid expensive damages. As user you profit from the reliability and availability of your plant.

• According to IEC/EN 60 255-1
• For DC monitoring
• Detection of
  - Overvoltage
  - Untervoltage
  - Voltage range excess in single-phase AC voltage systems
• No separate auxiliary necessary
• Output: 1 changeover contact
• De-energized on trip
• Adjustable switching voltage
• Adjustable hysteresis for reset
• Adjustable switching delay
• Fast fault detection
• Width: 35 mm
