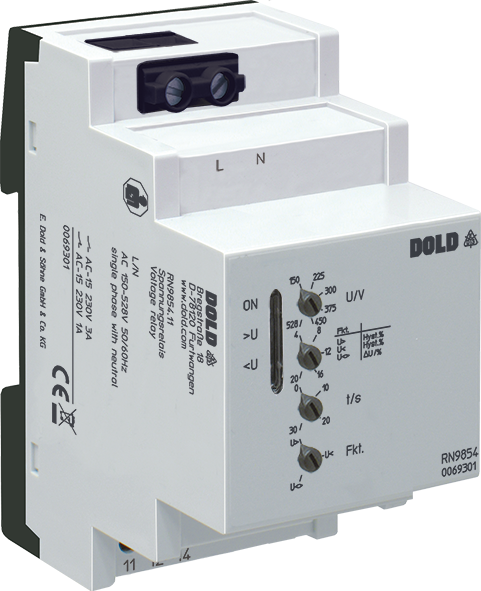

Dold RN9854.11 AC150-528V 4-20% 0-30S, Voltage Relay, sku: 0069301

The measuring relays RL 9854 and RN 9854 of the VARIMETER series monitors overvoltage, undervoltage and voltage range in single-phase systems. The measurement is very simple and without extensive wiring as there is no auxiliary power supply necessary. The monitoring functions are easily selectable using a single turn switch without complex menu structure. The early detection of up-coming break downs and preventive maintenance avoid expensive damages. As user you profit from the reliability and availability of your plant.

• According to IEC/EN 60255-1
• For monitoring AC single phase with 50 /60 Hz
• Detection of
  - Overvoltage
  - Undervoltage
  - Voltage range excess in single-phase AC voltage systems
• No separate auxiliary necessary
• Output: changeover contact
• De-Energized on trip
• Adjustable switching voltage
• Adjustable hysteresis for reset
• Adjustable switching delay
• Fast fault detection
• RL 9854: Width 35 mm
  RN 9854: Width 52.5 mm
