Dold

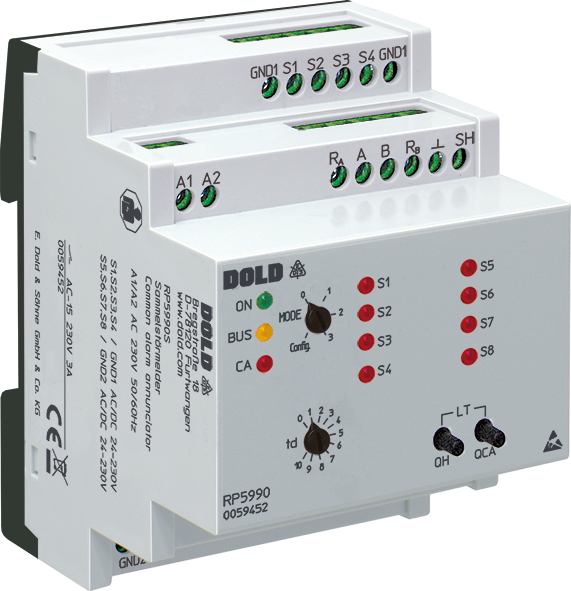

Dold RP5990PC DC24V, Common Alarm Annunciator, sku: 0065580
Dold RP5990PC DC24V, Common Alarm Annunciator, sku: 0065580
Regular price
€382,69
Regular price
Sale price
€382,69
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0065580
Base Module RP 5990
| Width: | 70 mm |
| Alarm inputs: | 8 |
| Alarm inputs extendable up to: | 88 |
| Operating principle: | Energized on trip, De-energized on trip |
| Operate delay: | Yes |
| Special features: | Bus-compatible, Configurable |
| Enclosure design: | Distribution board |
| Optional buzzer: | Yes |
| Optical signal: | LED |
| Type: | RP 5990 |
- Common Alarm Annunciator RP 5990, RP 5991
- Fast localisation of failures and their causes
- Reduction of standstill times in production
- Common alarm annunciator with manual or auto reset of faults
- Expandable from 8 to 88 fault signals
- Open or closed circuit operation settable with rotational switch on base unit and with link X1/X2 on extension units
- Adjustable on delay for input signals 0 to 10 sec
- Reset buttons for audible alarm and common alarm on front side
- Connection for external reset of audible alarm
- Galvanic separation to bus RS485 (optional)
- Accessories: buzzer RK 8832, display unit EH 5990, EH 5991
- Width: 70 mm
- Base Module RP 5990:
- 8 fault signal inputs with indicator LED on the unit
- One relay output each for audible alarm and common alarm
- Reset buttons for audible alarm and common alarm
- Connection for external reset of audible alarm - Extension Module RP 5991:
- 8 fault signal inputs with indicator LED on the unit
- As option one relay output each for audible alarm and common alarm
- As option reset buttons for audible alarm and common alarm
