Dold RP5994PC AC230V BASISMODUL, New- / First- / Common Signal Annunciator, sku: 0067351

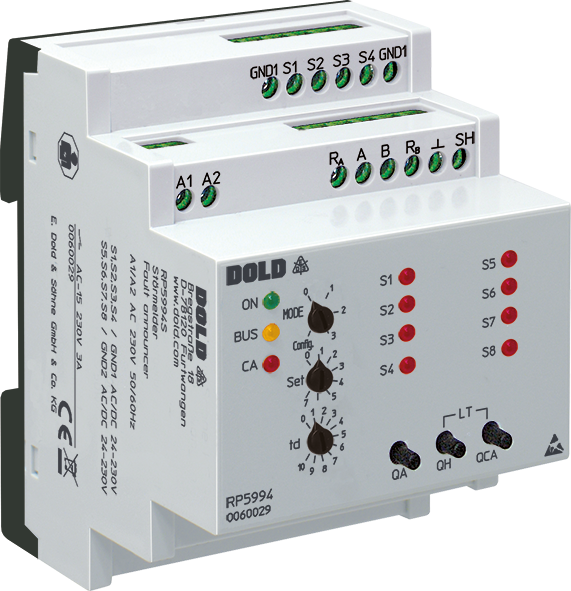

Base module RP 5994

• New- / First- /Common Signal Annunciator RP 5994, RP 5995
• Fast localisation of failures and their causes
• Reduction of standstill times in production
• Adjustable operating modes:
  - New- / First signal annunciator according to DIN 19 235,
  - Common alarm annunciator manual reset / auto reset settable
• Expandable from 8 to 88 fault signals
• Open or closed circuit operation settable
• Adjustable on delay for input signals 0 to 10 sec
• Reset buttons for audible alarm and common alarm on front side
• Connection for external reset of audible alarm, common alarm and single alarm according to setting
• Galvanic separation to bus RS485 (optional)
• Accessories: buzzer RK 8832, display unit EH 5994, EH 5995, text display unit EH 5996
• Width: 70 mm
• Base module RP 5994:
  - 8 fault signal inputs with indicator LED on the unit
  - One relay output each for audible alarm and common alarm
  - Reset buttons for audible alarm, common alarm, and single alarm
  - Connection of remote reset button. Function according to setting
• Extension module RP 5995:
  - 8 fault signal inputs with indicator LED on the unit
  - One relay output each for audible alarm and common alarm (on request)
  - Reset buttons for audible alarm, common alarm, and single alarm
  - Connection of remote reset button. Function according to setting
