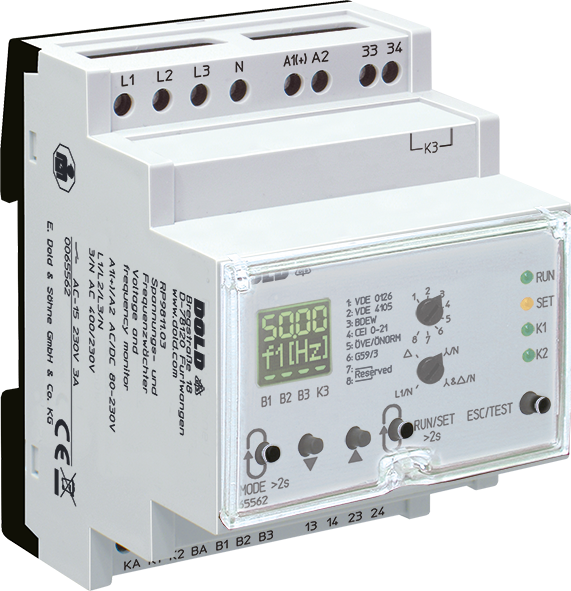

Dold RP9811.03 3/N AC400/230V, Voltage and frequency monitor, sku: 0065562

The voltage and frequency monitor RP 9811 represents a solution to monitor mains supply when feeding power to a public grid that conforms with various national standards. User-friendly: The unit can be adjusted quickly and simply with only two rotary switches. Use the first rotary switch to select one of the already preset standards according to your national requirements. Use the second rotary switch to set the type of system, quickly and simply, on the unit. You can adjust each parameter individually with menu-guidance in case of different requirements. All measuring variables required are constantly determined by the unit. If incorrect voltage or frequency values occur, the RP 9811 disconnects the distributed power generation system securely from the mains.

• According to DIN EN 60255-1
• Can be used according to EEG 2012 and SysStabV
• Voltage and frequency monitoring for generator sets
• Fail-safe 2-channel structure
• Monitoring of the section switches by measuring the response time
• System test via test button
• Enabling inputs allow integration into various ripple control and plant concepts
• Isolated grid detection
• Manual reset
• Memorising of disconnection time
• Connection or re-connection after adjustable delay time tOn
• Factory setting according to:
  VDE-AR-N 4105:2011-08, DIN VDE 0126-1-1:2013-08,
  BDEW-directive:2008-06, CEI 0-21:2012-06,
  ÖVE/ÖNORM E8001-4-712:2009, G59/3 LV
• Random controlled disconnection in the range of 50.2 Hz and 51.5 Hz for non-regulated power generation systems
• Random operated connection time (ton) setting range 60...600 s
• Additional fault signalling relay output
• High measuring accuracy
• Installion type enclosure 4TE (width x height x depth: 70 x 90 x 71 mm)
