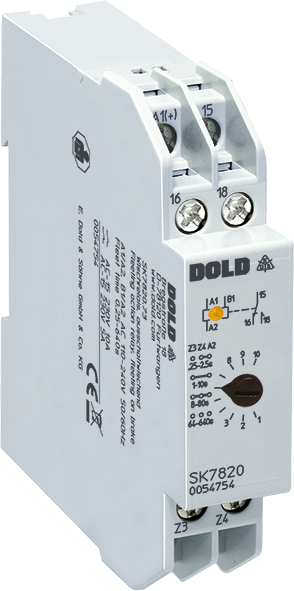

Dold SK7820.73 AC110-240V 0,25-640S, Fleeting action relay, sku: 0054754
Dold SK7820.73 AC110-240V 0,25-640S, Fleeting action relay, sku: 0054754
Regular price
€115,90
Regular price
Sale price
€115,90
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0054754
Time-dependent controllers
| Width: | 17,5 mm |
| Time function(s): | Fleeting on break |
| Nominal voltage: | AC, AC/DC |
| Time range: | 0,25 s - 640 s |
| Output contacts: | 1 C/O contact |
| Enclosure design: | Switch cabinet |
| Type: | SK 7820 |
- According to IEC/EN 61 812-1
- With 4 time ranges from 0.25 ... 640 s
- Adjustable
- With auxiliary voltage
- For wide voltage range AC 50/60 Hz 110 ... 240 V
- Control input operated with nominal voltage; no voltage free contact necessary
- LED indicator for status of contact
- 1 changeover contact
- Devices available in 2 enclosure versions:
IK 7820: depth 59 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43 880
SK 7820: depth 98 mm, with terminals at the top for cabinets with mounting plate and cable duct - Width: 17.5 mm
