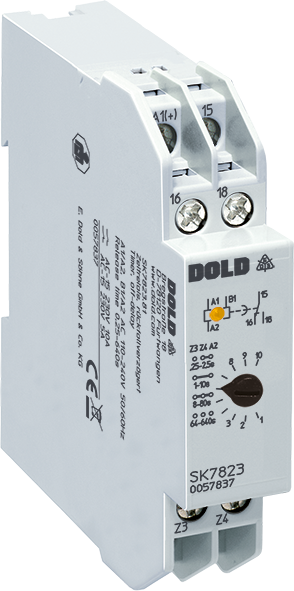

Dold SK7823.81 AC110-240V 0,25-640S, Timer, Off-delay, sku: 0057837
Dold SK7823.81 AC110-240V 0,25-640S, Timer, Off-delay, sku: 0057837
Regular price
€117,35
Regular price
Sale price
€117,35
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0057837
Time-dependent controllers
| Width: | 17,5 mm |
| Time function(s): | Off-delay, with control signal |
| Nominal voltage: | AC, AC/DC |
| Time range: | 0,25 s - 640 min |
| Output contacts: | 1 C/O contact |
| Enclosure design: | Switch cabinet |
| Type: | SK 7823 |
- OFF-delay relay with control signal according to EN 61812-1
- With wide voltage range AC 50/60 Hz 110 ... 240 V
- 1 changeover contact
- LED indicator for status of contact
- Devices available in 2 enclosure versions:
IK 7823: Depth 59 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43880
SK 7823: Depth 98 mm, with terminals at the top for cabinets with mounting plate and cable duct - Width 17.5 mm
