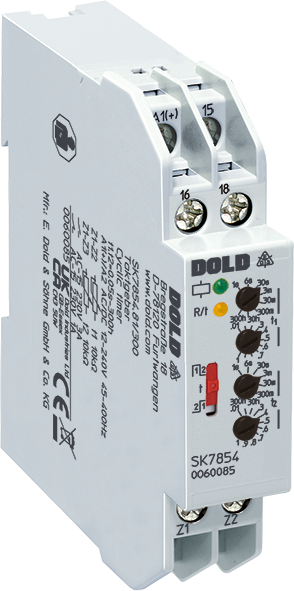

Dold SK7854.81 AC/DC12-240V 0,05S-300H, Cyclic timer, sku: 0059557

Time-dependent controllers

• Asymmetrical flasher relay according to IEC/EN 61812-1
• 8 time ranges from 0.05 s to 300 h selectable via rotational switches
• Impulse and break time separately adjustable
• Selectable start with impulse or break
• Voltage range AC/DC 12 ... 240 V
• Adjustment aid for quick setting of long time values
• Suitable for 2-wire proximity sensor control
• LED indicators for operation, contact position and time delay
• 1 changeover contact
• As option connection of 2 remote potentiometers 10 kΩ
• Devices available in 2 enclosure versions:
  IK 7854: depth 59 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43 880
  SK 7854: depth 98 mm, with terminals at the top for cabinets with mounting plate and cable duct
• 17.5 mm width
