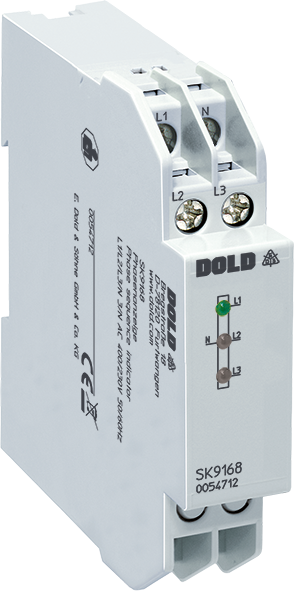

Dold SK9168 3AC50/60HZ 230/400V, Phase indicator, sku: 0054712

Dold SK9168 3AC50/60HZ 230/400V, Phase indicator, sku: 0054712

€59,09
€59,09
Sale Sold out
Taxes included.

📦 Ready for dispatch: 31.12.2025

SKU: 0054712

Indication of phase failure in 3-phase systems.

Measuring range max.: 400 V
Standard measuring range: 3/N AC 400/230 V
1- / 3-phase: 3
Width: 17,5 mm
Enclosure design: Switch cabinet
Type: SK 9168
  • According to IEC/EN 60 255, DIN VDE 0435-303
  • Indication of phase failure in 3-phase systems
  • Single phase connection possible
  • Independent of phase sequence
  • LED indicator for each phase
  • Devices available in 2 enclosure versions:
    IK 9168: depth 59 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43 880
    SK 9168: depth 98 mm, with terminals at the top for cabinets with mounting plate and cable duct
  • Width 17.5 mm
