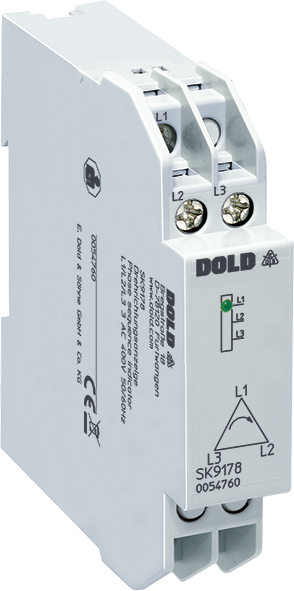

Dold SK9178 3AC50/60HZ 400V, Phase Sequence Indicator, sku: 0054760
Dold SK9178 3AC50/60HZ 400V, Phase Sequence Indicator, sku: 0054760
Regular price
€58,74
Regular price
Sale price
€58,74
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 31.12.2025
Couldn't load pickup availability
SKU: SKU:0054760
Indication of phase sequence in 3-phase systems.
| Measuring range max.: | 3 AC 400 V |
| Standard measuring range: | 3 AC 400 V |
| 1- / 3-phase: | 3 |
| Width: | 17,5 mm |
| Enclosure design: | Switch cabinet |
| Type: | SK 9178 |
- According to IEC/EN 60 255-1
- Indication of phase sequence in 3-phase systems
- Without auxiliary supply
- LED indicator for phase sequence
- Devices available in 2 enclosure versions:
IK 9178: depth 59 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43 880
SK 9178: depth 98 mm, with terminals at the top for cabinets with mounting plate and cable duct - Width 17.5 mm
