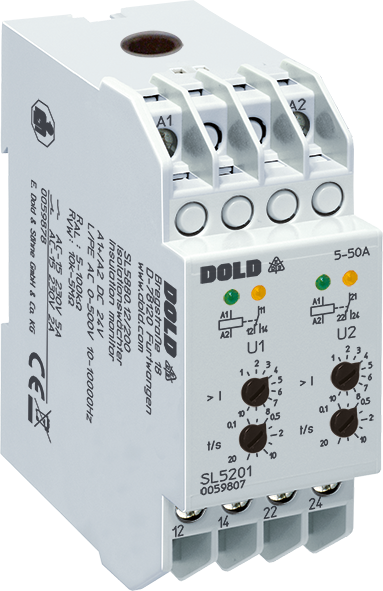

Dold SL5201/20007CT AC220-240V 5-50A, Overcurrent Relay, sku: 0059807
Dold SL5201/20007CT AC220-240V 5-50A, Overcurrent Relay, sku: 0059807
Regular price
€384,30
Regular price
Sale price
€384,30
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 19.11.2025
Couldn't load pickup availability
SKU: SKU:0059807
Overcurrent detection in single phase or 3-phase voltage systems.
| Width: | 35 mm |
| 1- / 3-phase: | 1 |
| Measuring range: | AC 5 - 50 A |
| Auxiliary voltage: | AC |
| Operate delay: | Yes |
| Output contacts: | 2 x 1 C/O contacts |
| Enclosure design: | Switch cabinet |
| Type: | SL 5201/20007CT |
- According to IEC/EN 60 255-1
- 2 independent relays in once enclosure
- 2 measuring ranges from 0.5 to 5 A
- Adjustable response values
- Fixed hysteresis
- Adjustable switching delay
- Closed circuit operation
- LED indicators
- With auyiliary voltage
- Galvanic separation between auxiliary circuit and measuring circuit
- 2 models available:
IL 5201: 63 mm deep with terminals near to the bottom to be mounted in consumer units or industrial distribution systems according to DIN 43 880
SL 5201: 100 mm deep with terminals near to the top to be mounted in cabinets with mounting plate and cable ducts - Width: 35 mm
