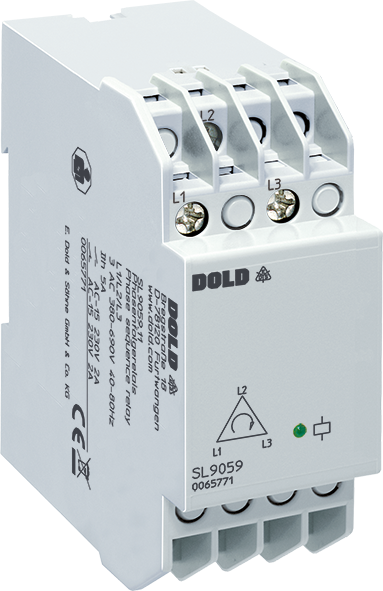

Dold SL9059.11 3AC380-690V 40-80Hz, Phase-sequence relay, sku: 0065771

Dold SL9059.11 3AC380-690V 40-80Hz, Phase-sequence relay, sku: 0065771

€138,47
€138,47
Sale Sold out
Taxes included.

📦 Ready for dispatch: 31.12.2025

SKU: 0065771

The phase sequence relays IL/SL 9059 and OA 9059 of the VARIMETER series monitor compliance with the correct phase sequence L1 - L2 - L3 and the presence of the three phase voltages in a three-phase system.

Measuring range max.: 690 V
Standard measuring range: AC 380 - 690 V
1- / 3-phase: 3
Output contacts: 1 C/O contact
Width: 35 mm
Enclosure design: Switch cabinet
Type: SL 9059
  • According to IEC/EN 60255-1
  • Detection of incorrect phase sequence
  • No separately auxiliary voltage necessary
  • Nominal voltage range 3 AC 380 ... 690 V
  • Suitable for operation with inverters (f = 40 ... 80 Hz)
  • Relay output:
    - IL/SL 9059: 1 changeover contact
    - OA 9059: 1 NC contact
  • Extended temperature range
  • Devices available in 3 enclosure versions:
    IL 9059: Depth 59 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43880
    SL 9059: Depth 98 mm, with terminals at the top for cabinets with mounting plate and cable duct
  • OA 9059: Sealed modul with stranded wire connection suitable for mounting in terminal box
  • Width
    - IL/SL 9059: 35 mm
    - OA 9059: 62 mm
