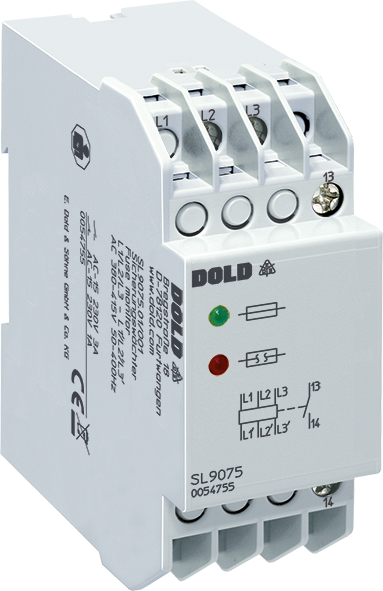

Dold SL9075.01/001 AC50...400HZ 380-415V, Fuse Monitor, sku: 0054755

The fuse monitors IL/IP/SL/SP 9075 of the VARIMETER series monitor up to 3 load fuses. Early detection of blown fuses, even when loads are switched off, and preventive maintenance prevent costly damage and, as a user, you benefit from the operational reliability and high availability of your system.

• According to IEC/EN 60255-1
• Recognizes fuse failures in three-phase mains up to 3 AC 690 V
• Can be used for all types and sizes of fuses
• Independent of phase sequence
• Shorter response time than with motor circuit-breakers
• As option:
  - Energized on trip (output relay activated in the event of a fault)
  - De-energized on trip (output relay not activated in the event of a fault) with IP 9075 programmable via X4-X5 or X3-X4
• As option with manual reset function and remote reset, programmable via X1-X2
• 2 LED indicators
• As option: 1 NO contact or 2 changeover contacts
• Devices available in 2 enclosure versions:
  I-model: Depth 59 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43880
  S-model: Depth 98 mm, with terminals at the top for cabinets with mounting plate and cable duct
• IL 9075, SL 9075: Width 35 mm
  IP 9075, SP 9075: Width 70 mm
