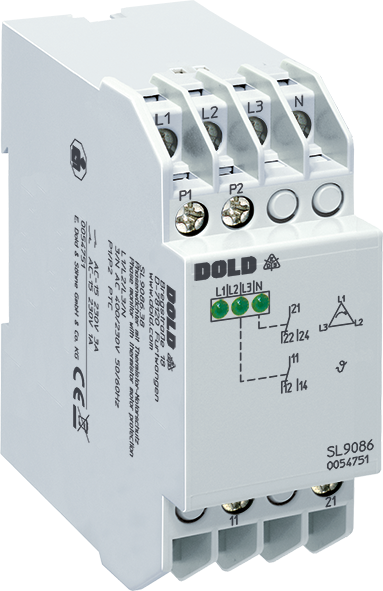

Dold SL9086.38/100 3AC50/60HZ 230/400V, Phase monitor with thermistor motor protection, sku: 0064821

Dold SL9086.38/100 3AC50/60HZ 230/400V, Phase monitor with thermistor motor protection, sku: 0064821

€185,38
€185,38
Sale Sold out
Taxes included.

📦 Ready for dispatch: 21.11.2025

SKU: 0064821

Monitoring of 3-phase Motor systems with temperature sensing of the Motor thermistors, e.g. for elevators.

Width: 35 mm
1- / 3-phase: 3
Standard measuring range: 3/N AC 400/230 V
Measuring range max.: 400 V
Auxiliary voltage: Without
Output contacts: 2 x 1 C/O contacts
Enclosure design: Switch cabinet
Type: SL 9086
  • According to IEC/EN 60 255-1, IEC/EN 60 947-8 (pr EN 60 947-8) and part 303
  • Monitoring of
    - Undervoltage 3 phase
    - Phase failure
    - Phase sequence
    - Loss of neutral
    - Phase asymmetry
    - Overtemperature
    - Broken wire in thermistor circuit
    - Short circuit in thermistor circuit
  • Without auxiliary supply
  • 1 sensing input for 1 ... 6 thermistors
  • LED indication
    - Supply voltage
    - Measuring voltage
    - Temperature
  • As option with manual reset on temperature fault
  • 2 x 1 changeover contact
  • Devices available in 2 enclosure versions:
    IL 9086: depth 59 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43 880
    SL 9086: depth 98 mm, with terminals at the top for cabinets with mounting plate and cable duct
  • Width 35 mm
