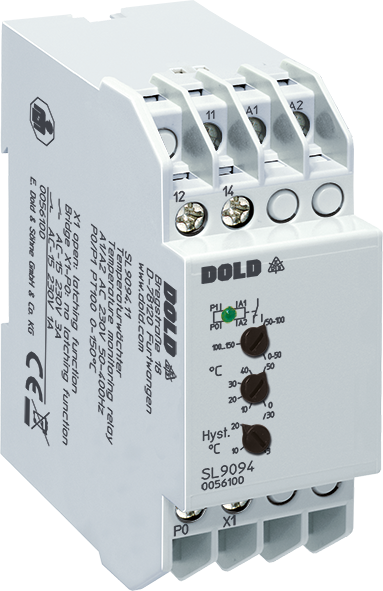

Dold SL9094.11 AC230V 0-150C, Temperature Monitoring Relay, sku: 0056100

The temperature monitoring relays IK 9094, IL 9094, SK 9094, SL 9094 of the VARIMETER series are used for temperature monitoring of motors, ball bearings and rooms. The early detection of impending failures and preventive maintenance prevent costly damage and as a user you benefit from the operational reliability and high availability of your system.

• According to IEC/EN 60255-1
• 1 PT100 input, 2-wire connection
• 3 temperature ranges
• Adjustable response value
• Adjustable Hysteresis with wide range 3 ... 30 °C or 1 ... 15 °C
• Broken wire detection in sensor circuit
• Programmable hysteresis or latching function via terminal X1
• IK 9094 no galvanic separation between measuring and auxiliary circuit
• Closed circuit operation
• LED indicator for operation and state of output relay
• 1 changeover contact
• As option with response value up to - 50 °C, e.g. for refrigeration plants
• As option with galvanic separation between measuring and auxiliary circuit
• Devices available in 2 enclosure versions:
  I-model: Depth 59 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43880
  S-model: Depth 98 mm, with terminals at the top for cabinets with mounting plate and cable duct
• DIN rail or screw mounting
• IK 9094, SK 9094: 17.5 mm width
  IL 9094, SL 9094: 35 mm width
