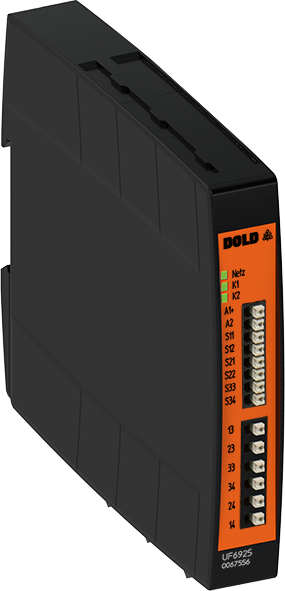

Dold UF6925.02/012/61 DC24V, Emergency stop module, sku: 0068196

Dold UF6925.02/012/61 DC24V, Emergency stop module, sku: 0068196

€176,38
€176,38
Sale Sold out
Taxes included.

📦 Ready for dispatch: 31.12.2025

SKU: 0068196

The emergency stop module UF 6925 is suitable to protect men and machine by safety related enabling or disabling of a safety circuit. It is used in applications with e-stop buttons and safety gates.

Width: 17,5 mm
Cat. / PL acc. to EN ISO 13849-1: 4/e
SIL acc. to IEC/EN 62061: 3
Nominal voltage: DC
Suited as safety gate monitor: Yes
Thermal current Ith max.: 8 A
1- / 2-channel: 2
Cross fault detection: Yes
Connection: Front side cage clamp terminals
Output contacts max.: 3 NO contacts
Approvals: UL
Type: UF 6925
  • Corresponds to
    - PL e and category 4 according to EN ISO 13849-1
    - SIL 3 according to EN 61508
    - maximum SIL 3 according to EN IEC 62061
  • Can be used in applications:
    - According to EN 61511
    - According to EN 50156-1 for furnaces
  • 2-channel operation
  • Forcibly guided output contacts
  • With or without cross fault monitoring in the E-stop loop, switch S1
  • Manual restart or automatic restart, switch S2
  • LED indicator for channel 1, 2 and Netz
  • Width 17,5 mm
