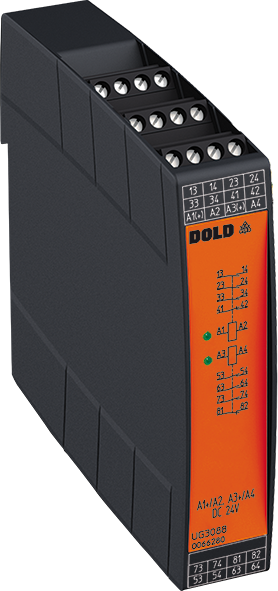

Dold UG3088.57PS DC24V, Interface module, sku: 0068361

The interface module UG3088 includes 2 separate devices in one enclosure. Because of its forcibly guided contacts a safe interfacing between control circuit and load circuit is provided. It can also be used to multiply and reinforce the contacts of safety modules. Different internal configuration possibilities allow to offer interface modules for various applications. To switch e.g. high DC loads the the output contacts can be connected in series. On the module with 2NO and 2 NC contacts these can be connected internally as changeover contacts. Also a common control of both relays with only one input can be done.

• With forcibly guided contacts according to IEC 61810-3
• Version with up to 2 x 4 contacts
• Variant to switch high DC-load
• Width: 22,5 mm
