Dold

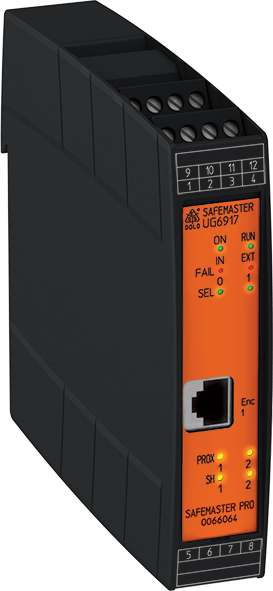

Dold UG6917/302, Speed monitoring module, sku: 0066064
Dold UG6917/302, Speed monitoring module, sku: 0066064
Regular price
€903,62
Regular price
Sale price
€903,62
Unit price
/
per
Taxes included.
📦 Ready for dispatch: 06.12.2025
Couldn't load pickup availability
SKU: SKU:0066064
| Width: | 22,5 mm |
| Cat. / PL acc. to EN ISO 13849-1: | 4/e |
| SIL acc. to IEC/EN 62061: | 3 |
| Signal generator: | 2 Proximity sensors, 1 Sin/Cos Encoder |
| Type: | UG 6917/302 |
- Speed monitoring module for 1 to 2 axes
- Terminal blocks for connecting 2 proximity sensors
- Available with 0, 1 or 2RJ45 sockets for connecting encoders (TTl, HTL, sin/cos)
- Speed pre-selection, with or without direction monitoring. Up to 4 speed thresholds can be configured.
- Speed window monitoring
- Standstill monitoring
- For rotational or linear movements
- For simple expansion of SAFEMASTER PRO via DIN rai lbus (IN-RAIL-BUS)
- For safety applications up to PLe / cat. 4 or SIL 3
- Status LEDs for comprehensive diagnostics
- Installation width: 22,5 mm
