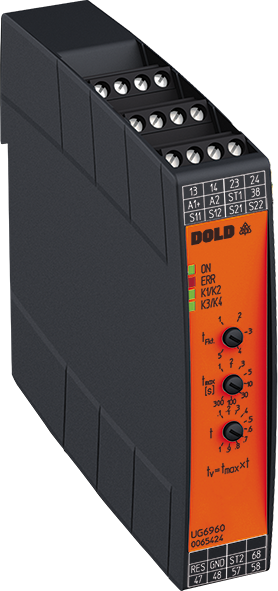

Dold UG6960.04PS/100/61 DC24V 300S, Multifunctional safety timer with instantaneous contacts, sku: 0065424

Dold UG6960.04PS/100/61 DC24V 300S, Multifunctional safety timer with instantaneous contacts, sku: 0065424

€467,96
€467,96
Sale Sold out
Taxes included.

📦 Ready for dispatch: 06.12.2025

SKU: 0065424

The multifunction safety timer UG 6960 provides protection of men and machines by enabling and disabling a safety circuit. This is done by the adjusted time delay function. Simply select 1 out of 5 delay functions with a rotary switch – ready. The adjusted time is safe over the complete setting range. The UG 6960 is available for different safety functions. It has safe delayed and instantaneous contacts.

Width: 22,5 mm
Cat. / PL acc. to EN ISO 13849-1: 4/e
SIL acc. to IEC/EN 62061: 3
Nominal voltage: DC
Thermal current Ith max.: 8 A
1- / 2-channel: 2
Application: Emergency stop, Light barrier, Safety mat, Safety gate, Two-hand
Cross fault detection: Yes
Connection: Pluggable screw terminals, Pluggable cage clamp terminals, Pluggable cage clamp terminals 2-wire
Safe output contacts, redundant NO contacts: 4
Approvals: UL
Type: UG 6960
  • According to
    - Performance Level (PL) e and category 4 to EN ISO 13849-1
    - SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
    - Safety Integrity Level (SIL) 3 to IEC/EN 61508 and IEC/EN 61511
  • Acc. to EN 50156-1 for furnaces
  • Line fault detection on On-button:
  • Manual restart or automatic restart
  • With or without cross fault monitoring
  • 2-channel
  • Forcibly guided output contacts
  • Output: 2 NO instantaneous contact and 2 NO contacts delayed
  • 1 semiconductor output for instantaneous contacts
    1 semiconductor output for delayed contacts
  • LED indicator for operation, safety function, time delay and failure
  • As option with pluggable terminal blocks for easy exchange of devices
    - with screw terminals
    - or with cage clamp terminals
  • Width: 22.5 mm
